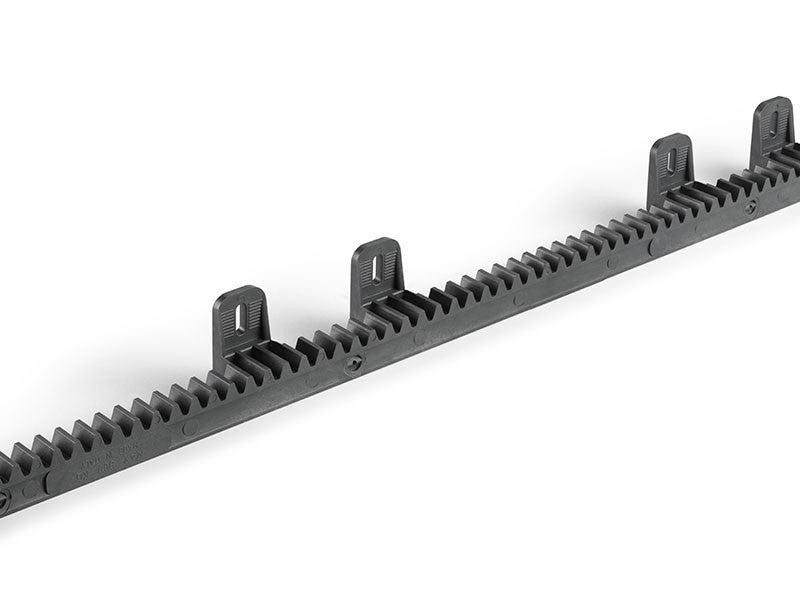

The 824NY + 829 nylon rack with higher fixing (1 m) is a reinforced gear rack designed for sliding gate automation systems where flexible installation height and low noise operation are required.
The rack features a nylon outer structure with an internal steel core, combining reduced noise with sufficient mechanical strength. Compared to steel racks, it significantly lowers vibration and operational noise during gate movement.
The higher fixing system allows the rack to be mounted in an elevated position relative to the gate frame. This is especially useful when the motor pinion is positioned higher or when additional clearance is required due to installation constraints.
The rack is supplied in 1-meter segments, making it easy to align and install along the full length of the gate. It engages with the drive gear, converting motor rotation into smooth linear movement.
Suitable for residential and light commercial sliding gates, particularly in installations requiring height adjustment or quieter performance.
Package Contents
1 × nylon rack 824NY (1 m)
Higher fixing elements / supports (829 system)
Integrated mounting points
